Ultrasonic probes

Straight Beam Dual Element Probes with replaceable membrane

Straight Beam Dual Element Probes with replaceable membrane

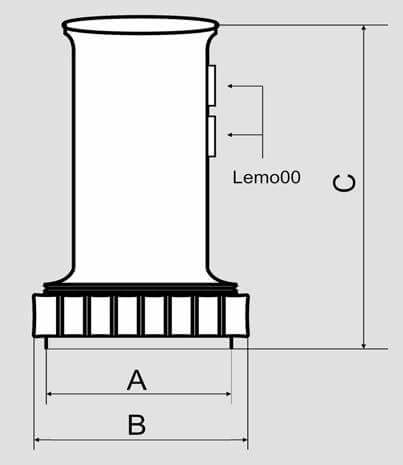

Transducer dimensions:

Element size, A, B, C,
mm in mm in mm in mm in
∅20 ∅.750 24 .9 35.5 1.32 52.5 2.0
6x20 .250x.750 30 1.2 44.5 1.75 57.0 2.24
7x18 .250x.750 30 1.2 44.5 1.7 57.0 2.24



General specifications:

Catalog number Frequency, MHz Element size, Type of case Connector type Connector position
mm in
TSD2-20F* 2.0 ∅20 ∅.750  Plated brass Lemo00 Side
TSD4-20F 4.0 20 .750 Plated brass Lemo00 Side
TSD2-24F 2.0 6x20 .250x.750 Plated brass Lemo00 Side
TSD4-24F 4.0 6x20 .250x.750 Plated brass Lemo00 Side



* material of the face transducer: F • flexible.
