Rails and welds testing

The strength, quality and reliability of rails during their operation is crucial for the railway industry.

Nondestructive testing of rails and welds



Monitoring and testing technology: rail flaw detection systems

Manual testing equipment of rails and welded rail joints

Mechanized NDT of rails by means of removable railway inspection trolleys

Rapid continuous rail testing by mobile means



The strength, quality and reliability of rails during their operation is crucial for the railway industry.

These qualities are of such importance because the development of defects and disruptions of the rails strength characteristics lead to their breaking, damages of trains and even to railway crashes. Long-term operation of rails increases the probability of developing serious defects (see UIC Code 712 R) and, of course, this may significantly affect the safety of the railway transportation.

The scientific and industrial companies which produce rail inspection equipment and provide non-destructive control services constantly improve both the testing methods and the inspection results analysis technology to ensure timely detection of not only critical defects, but also defects that just have started their development.

For this purpose, the research and production company OKOndt GROUP has developed a series of ultrasonic and eddy current rail inspection equipment.



Monitoring and testing technology: rail flaw detection systems

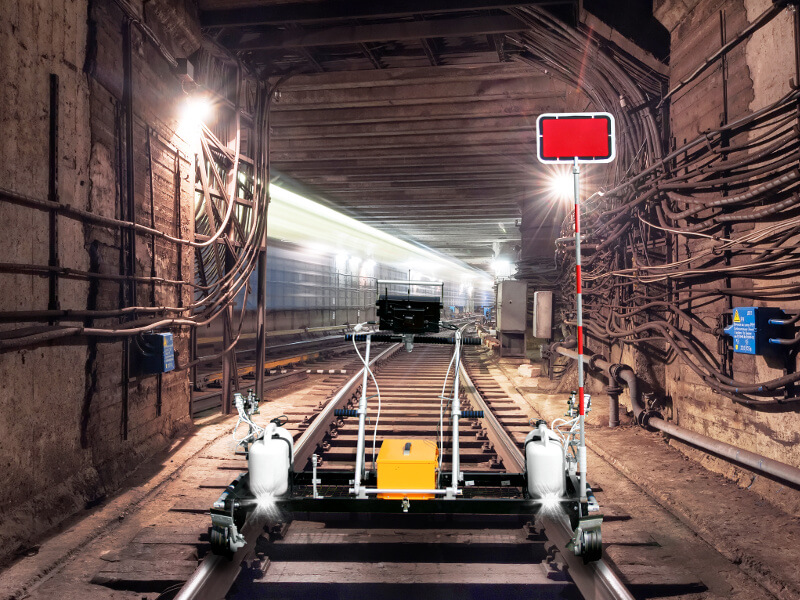

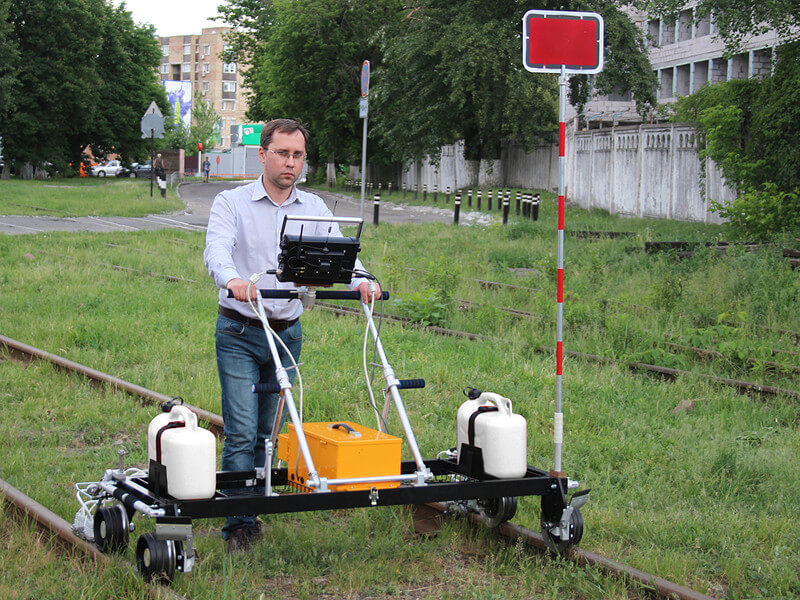

Ultrasonic rail tester UDS2-73 in the process of testing the rail track

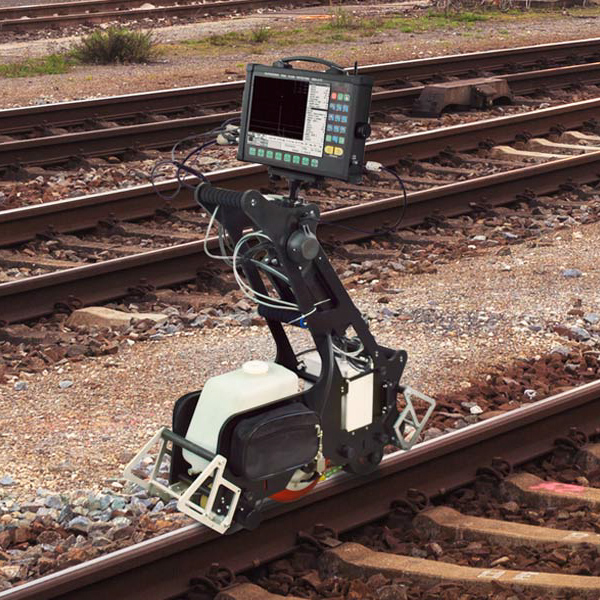

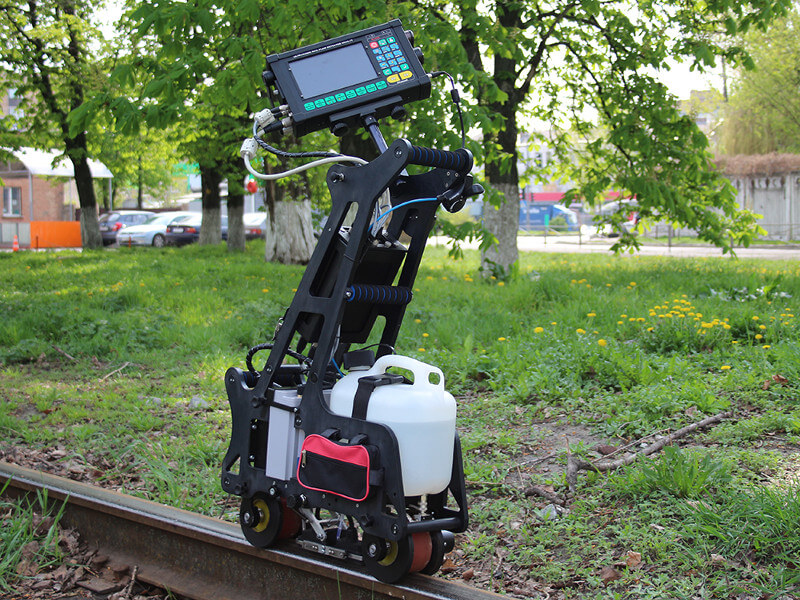

Ultrasonic trolley UDS2-77 on the real rails

Ultrasonic Testing

Railway tracks are inspected by ultrasonic high frequency waves. Usually ultrasonic rail flaw detector uses the ultrasonic waves with a frequency of 2 to 5 MHz to inspect rails.

The defects in rails have different nature: direction of development, manufacturing defects, operational defects. That’s why manufacturers of the ultrasound testing equipment create railway crack detectors with various sounding schemes and types of probes. Different angles of ultrasound input into the rail and testing methods (echo method, echo-shadow method, tandem method) are used as well.

Besides that, the manufacturers of the ultrasonic rail testers and the ultrasonic weld testing equipment implement different types of data output to the screen, for example: A-scan, B-scan and their various combinations for the efficient defects detention.

The variety of testing methods and sounding schemes, as well as various types of data visualization make it possible for the ultrasonic testers to detect the defects effectively and with great probability at different stages of their development.

Eddy current railroad track inspection tools

In the rails head acting surface, as well as on the rail head running surface the quenching cracks may be developed in the process of the rails exploitation.

This type of defect initially appears on the rail surface and develops to the depth after some time.

Eddy current rail inspection equipment is highly efficient for detecting this type of defects. Timely detected and assessed defect depth in the rail head and on the head running surface allows to extend the service resource by the rail profile recovery with the grinding machines.

In this case the application of eddy current railroad track inspection tools is justified not only by a possibility to detect flaws but also by their assessment.

Ultrasonic testing equipment for rail welded joints

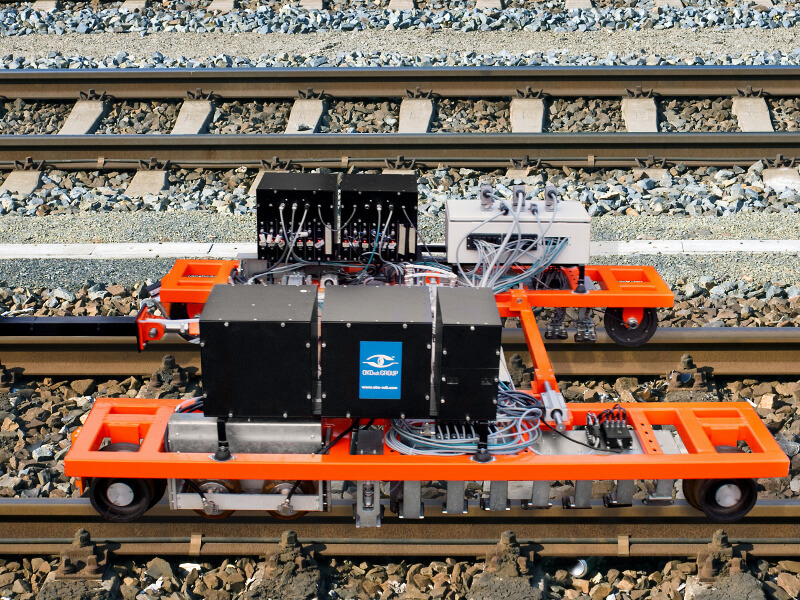

OKOSCAN 73HS High-Speed Rail Testing System
Mechanized eddy current railway crack detector ETS2-77








Manual testing equipment of rails and welded rail joints



Testing of the rail welded joint by the USR-01 ultrasonic kit
Testing of the rail welded joint by the USR-01 ultrasonic kit


At the moment various rail testing equipment is used in ultrasonic rail inspection, which in turn require the participation of a person to interpret the results of their test.

Different regions and countries prefer to use different types of ultrasonic rail flaw detectors.

Manual ultrasonic inspection of rails implies using hand-held ultrasound testing equipment, such as portable UT flaw detector Sonocon B plus a set of ultrasonic transducers and a special scanning device (USR-01).

Combined application of manual UT rail flaw detector and ultrasonic weld inspection equipment allows to carry out a secondary testing of railroad tracks laid, according to the results of mechanized inspection by ultrasonic railways crack detectors or trolleys.

Also, the above mentioned rail inspection equipment allows to fulfill the pre-weld inspection of the end sections of new and used rails before welding them at rail welding enterprises or monitoring joints welded by electrocontact or aluminothermic methods.








Mechanized NDT of rails by means of removable railway inspection trolleys

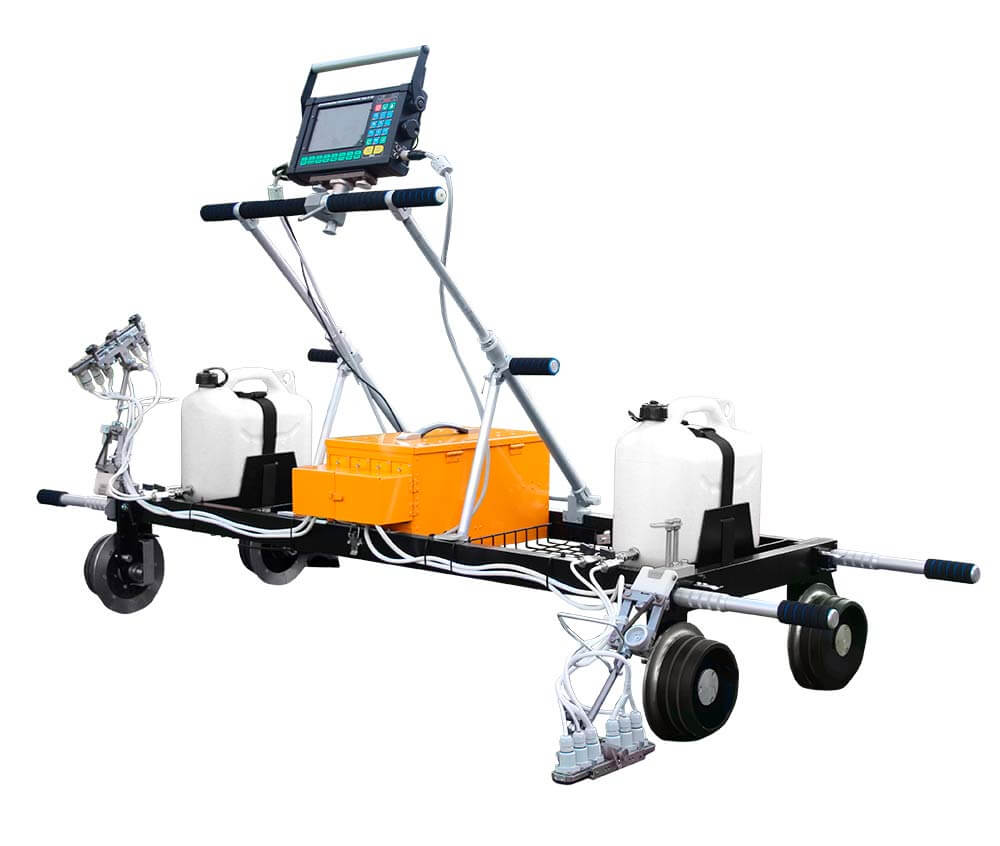

Ultrasonic mechanized railway track inspection trolley UDS2-73
Ultrasonic mechanized railway track inspection trolley UDS2-73
Ultrasonic mechanized railway track inspection trolley UDS2-73

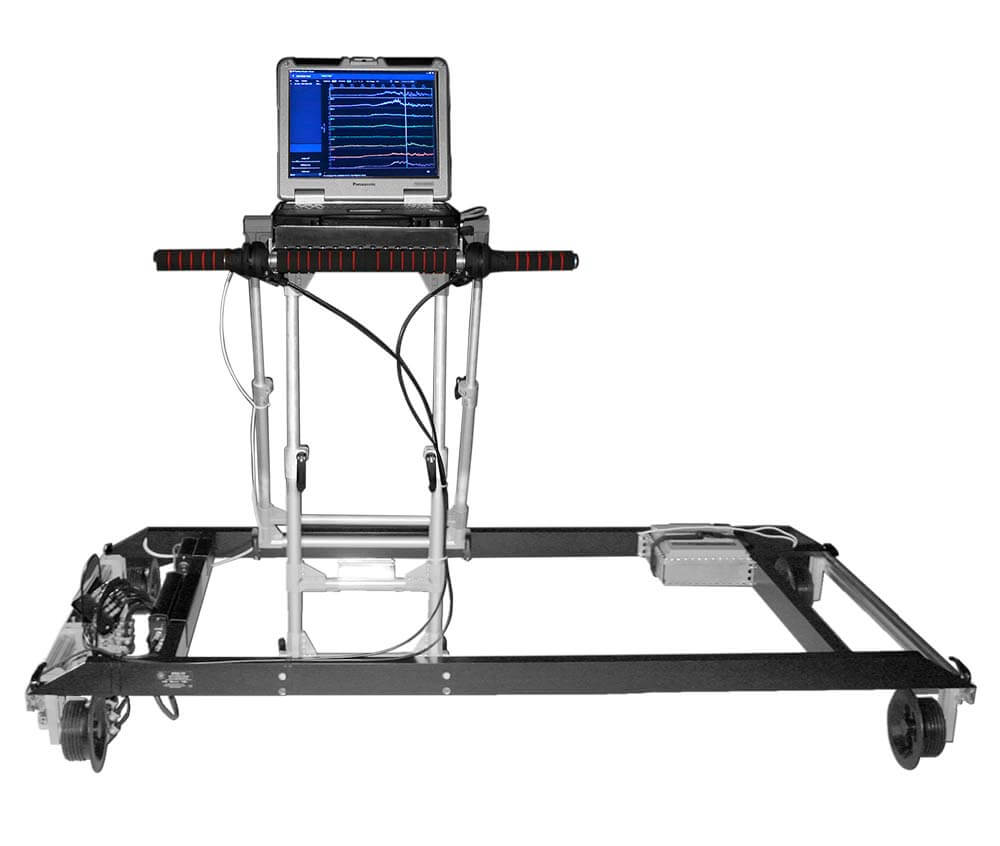

Mechanized eddy current railway crack detector ETS2-77

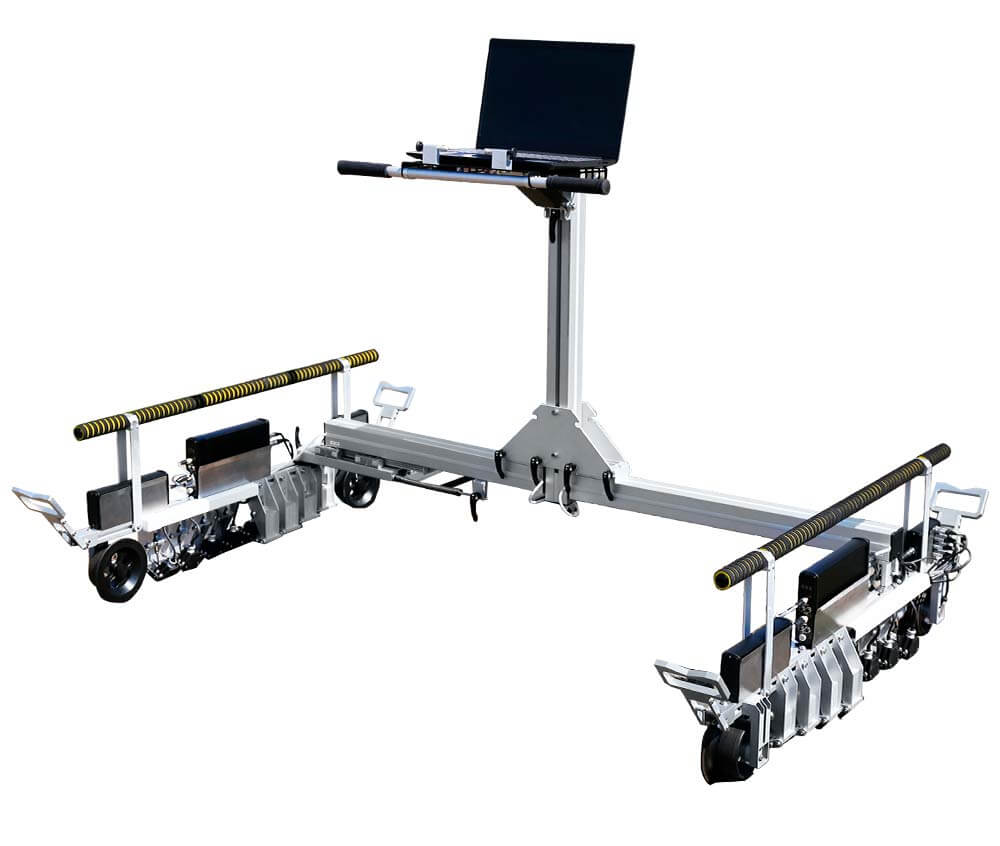

Mechanized eddy current railway crack detector ETS2-73


This type of testing involves the use of mechanized railway track inspection trolleys, which are moved by operator.

There are two types of trolleys exist:

  1. single rail trolley:
  2. double rail trolley:



Such railway inspection trolleys house the electronic equipment and transducer blocks, which in turn implement various testing schemes.

Mechanized ultrasonic rail flaw detectors allow:

  1. to carry out continuous monitoring at a speed of up to 4 km/h for defects in both rails of the railway track along the entire length and section of it, with the exception of the flanges of rail foot;
  2. to fulfill manual confirming testing of individual sections of rails and welds;
  3. to determine the parameters of detected defects and store the results of testing in energy-independent memory.

Mechanized eddy-current railway crack detectors allow to carry out:

  1. testing at a speed of up to 2.5 m/s for defects in one rail line of the railway track both on the rail head acting surface and the head running surface;
  2. manual prove-up testing of individual sections of the surface;
  3. assessment of the detected defect depth and backing up the test results in nonvolatile memory.

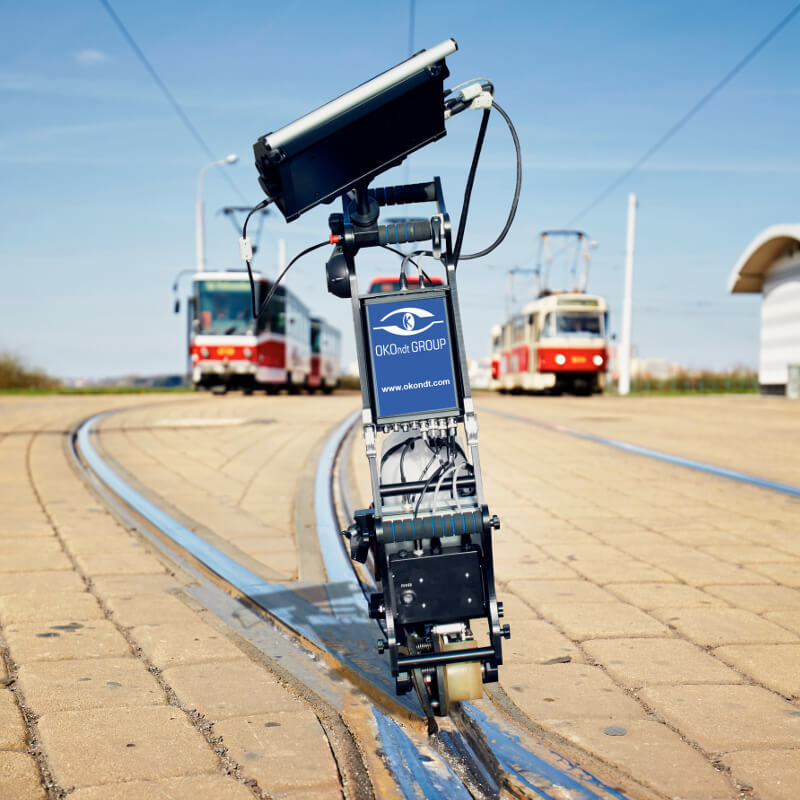

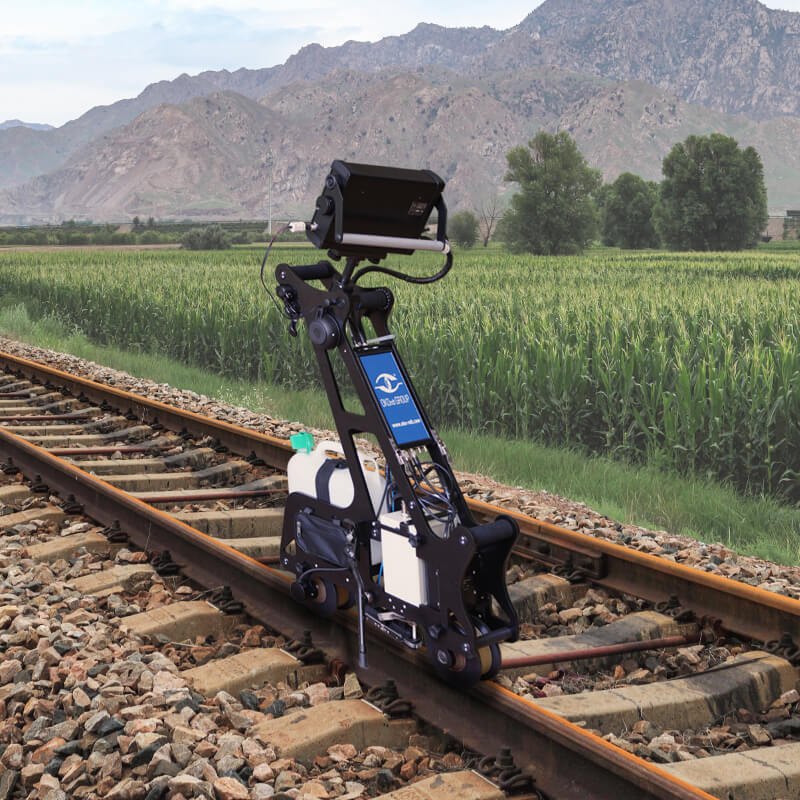

Ultrasonic mechanized railway track inspection trolley UDS2-77
Ultrasonic mechanized railway track inspection trolley UDS2-77
Ultrasonic mechanized railway track inspection trolley UDS2-77






Rapid continuous rail testing by mobile means

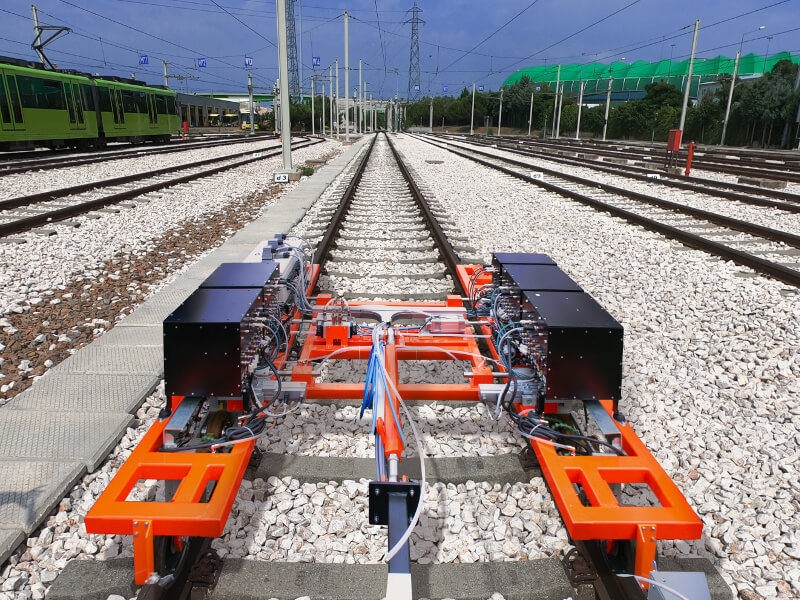

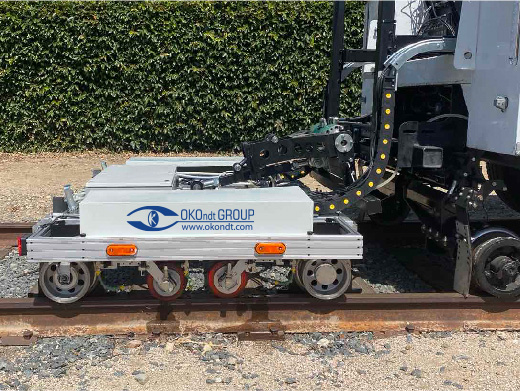

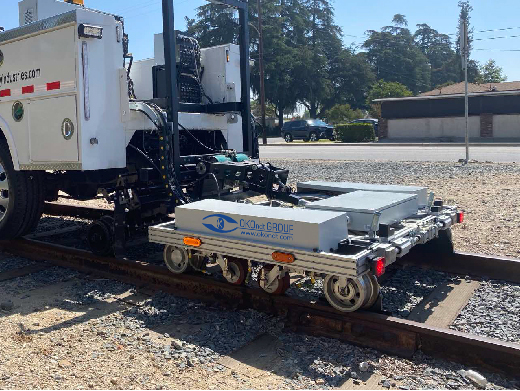

High-speed rails testing system OKOSCAN UT73HS
High-speed rails testing system OKOSCAN UT73HS
High-speed rails testing system OKOSCAN UT73HS



High-speed rails testing system OKOSCAN UT73HS


This technology lies in the fact that the ultrasonic testing of railway tracks is carried out by means of high-speed transport systems (vehicle, wagon or rail car) without stopping along the assigned route; this allows you to inspect areas exceeding 100 km per shift.

 After that, the monitoring data is sent and analyzed in a remote location. Once the data has been analyzed and potentially dangerous sections of rail are revealed, the report is sent to the operators who are conducting confirmatory checks with the help of manual or mechanized flaw detectors.

One of the OKOndt GROUP™ developments - High-Speed Rails Testing System OKOSCAN UT73HS is intended for automated testing at a speed up to 40 km/h (25 miles). The rail flaw detection vehicle includes carriage, wheel probes, ultrasonic modules and software.





High-speed rails testing system OKOSCAN UT73HS
High-speed rails testing system OKOSCAN UT73HS
