Eddy current non-destructive testing method is of paramount importance for technical diagnostics of aircraft parts.

Explore more



Eddy current non-destructive testing method is of paramount importance for technical diagnostics of aircraft parts.

The eddy current method has a number of advantages as compared to other methods, in terms of the costs of NDT equipment and consumables. This method is distinguished by high productivity, high reliability of testing and does not impose specific requirements on the quality or roughness of surface to be tested. Testing can be performed even without removing the coating or scaling.

The eddy current method is used for testing wings (fatigue cracks on the inside of wing boxes), bodies, wheel discs, engine parts (mainly - engine blades), rotors, axes, fasteners and holes (flaws in rivets, with the latter remaining in place), landing gears made of high-strength steel.

Eddy current testing is possible both at the stage of production of aircraft, helicopters or other aircraft equipment, and during on-site maintenance.



  • On-site maintenance of aircraft includes:

High-frequency eddy current testing

Low-frequency eddy current testing

detection of fatigue or corrosion surface flaws detection of fatigue or corrosion sub-surface flaws
airframe parts (wings, bodies) cracks under skin
landing gears (wheel discs) cracks under repair patch
propellers cracks under sealant
control units cracks inside riveted joints
riveted and bolted joints flaws under rivet head
engine blades
Checking an aircraft wheel with a portable eddy current flaw detector
Checking an aircraft wheel with eddy current inspection system SMARTSCAN
Portable eddy current flaw detector Eddycon C used for testing of aircraft parts




  • Detection of surface flaws



Probes for eddy current flaw detectors produced by OKOndt
Probes for eddy current flaw detectors produced by OKOndt
Probes for eddy current flaw detectors produced by OKOndt
Probes for eddy current flaw detectors produced by OKOndt

This task has been successfully solved thanks to high-frequency NDT technologies which are based on the use of relatively high operating frequencies (over 1 MHz). In aluminum alloy parts, cracks can be detected at a depth over 0.2 mm, with a minimum length of 2 mm and width of 0.1 mm. In titanium alloy, austenitic and ferritic steel parts, cracks can be detected at a depth over 0.5 mm, with a minimum length of 2 mm and width of 0.1 mm. Eddy current flaw detectors are provided with pencil-type or L-shaped probes, as well as with special-purpose probes for testing blades and hole edges.




NDT of aircraft skin with portable eddy current equipment
Convenient nondestructive testing of aircraft wheel with the portable eddy current flaw detector Eddycon C
Easy and convenient NDT of aircraft skin with Eddycon C - portable eddy current flaw detector, produced by OKOndt




SMARTSCAN Aircraft Wheel Inspection System

Explore More
  • Detection of hidden sub-surface flaws



Eddy current probes for hidden sub-surface flaws
Eddy current probes for hidden sub-surface flaws

An essential advantage of the eddy current non-destructive testing method is the possibility to detect flaws of fatigue and corrosion origin in the inner layers of multilayer structures, even without removing the fasteners and without disassembling the structures. This facilitates an effective use of the eddy current method not only during the repair of aircraft, when it is possible to remove the fasteners, but directly during tests or on-site maintenance.
Based on the new design of eddy current probes, fundamentally new technologies and means for recognizing the hidden flaws in integral multilayer aircraft structures have been created, particularly, for detecting the flaws under aircraft skin at low frequencies.
Test objects
Fasteners, integral multilayer structures, repair patch in the middle of aircraft wing, shock strut pistons, riveted joints, inside parts of wing boxes, skin-stringer interface.




  • Detection of the surface defects in the holes and countersinks



Eddy current probes for the surface defects in the holes and countersinks

Another important task that can be successfully solved with the eddy current testing method is the detection of the surface defects in the holes and countersinks. These areas can be effectively and efficiently tested using rotary eddy current scanners equipped with special ECPs (reflection type) of different diameters.

Eddy current aircraft wheel inspection system SMARTSCAN
Rotary scanner for hole testing SVR-04 that can be used together with Eddycon C and Eddycon CL flaw detectors

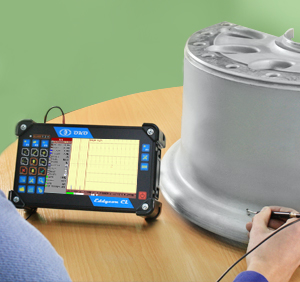

Portable eddy current flaw detector with a large screen Eddycon CL, side view
