Ultrasonic Straight Beam Probes (double element) produced by OKOndt GROUP™





Ultrasonic Straight Beam Probes (double element) produced by OKOndt GROUP™

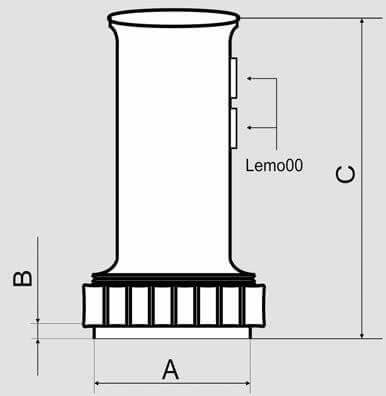

Transducer dimensions:

Element dia., A, B, C,
mm in mm in mm in mm in
∅10 ∅.375 13.2 .52 9.0 .35 50.4 1.98
∅12 ∅.500 15.4 .60 9.0 .35 50.4 1.98
∅20 ∅.750 24.0 .94 9.0 .35 59.0 2.32
7x18 .275x.750 29.0 1.14 10.0 .40 66.0 2.60
6x20 .250x.750 29.0 1.14 10.0 .40  66.0 2.60



General specifications:

Catalog number Frequency, MHz Element size, Type of case Connector type Connector position
mm in
TSD2-10 2.0 ∅11/2 ∅.375 Plated brass Lemo00 Side
TSD4-10 4.0 3.5x10 .375 Plated brass Lemo00 Side
TSD5-10 5.0 ∅9/2 ∅.375 Plated brass Lemo00 Side
TSD2-12 2.0 ∅12 ∅.500 Plated brass Lemo00 Side
TSD4-12 4.0 ∅12 ∅.500 Plated brass Lemo00 Side
TSD5-12 5.0 ∅12 ∅.500 Plated brass Lemo00 Side
TSD2-20 2.0 ∅20 ∅.750 Plated brass Lemo00 Side
TSD4-20 4.0 ∅20 ∅.750 Plated brass Lemo00 Side
TSD5-20 5.0 ∅20 ∅.750 Plated brass Lemo00 Side
TSD2-24 2.0 7x18 .275x.750 Plated brass Lemo00 Side
TSD4-24 4.0 6x20 .250x.750 Plated brass Lemo00 Side
TSD5-24 5.0 6x20 .250x.750 Plated brass Lemo00 Side
