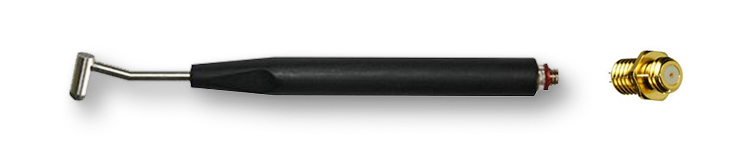

Right Angle Surface Probe (90˚ tip, handle angle 15°, Single / Single Shielded)

Right Angle Surface Probe (90˚ tip, handle angle 15°, Single / Single Shielded)

Designation

Tip Ø 'D', mm

Drop length, mm

Length, mm

Centre Frequency

Connector

Material

SU200K5A15°4.5Dx6.4-105 S

4.5

6.4

105

200 kHz

Microdot



Fe/NFe

SU500K5A15°4.5Dx6.4-105 S

4.5

6.4

105

500 kHz

Fe/NFe

SU500K5A15°4.5Dx12.7-105 S

4.5

12.7

105

500 kHz

Fe/NFe

SU2М5A15°2.5Dx2.7-105 S

2.5

2.7

105

2 MHz

NFe

SU2М5A15°3Dx2.7-105 S

3

2.7

105

2 MHz

NFe

SU2М5A15°3Dx6.4-105 S

3

6.4

105

2 MHz

NFe

SU2М5A15°3Dx12.7-105 S

3

12.7

105

2 MHz

NFe

SU6М5A15°2.5Dx6.4-105 S

2.5

6.4

105

6 MHz

NFe



SU

200K

5A

15°

4.5D

x

6.4

-

105

S(Sh)

1

2

3

4

5



6



7

8





1. SU – surface probe for surface flaws detection.

2. Probe frequency:

“HZ” designates the Hz range; “К” designates the kHz range; “М” designates the MHz range.

3. Drop angle of a sensing element to the probe axis “5А” is 90.

4. Angle of a handle.

5. Probe tip diameter, mm

6. Drop length, mm

7. Probe length, mm. Standard length of 105 mm (4.1") can be changed upon request.

8. Probe type designation: “S”. “S” – Single coil probe.

Probes of standard type are manufactured unshielded. In case a shielded probe is required, when making an order, please indicate the letters ”Sh” (Shielded) at the end of a designation code.
