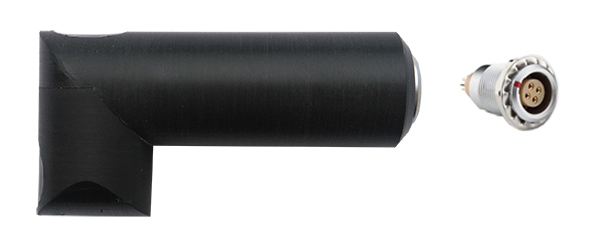

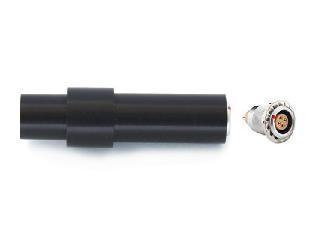

Right Angle (L-shaped) Weld Testing ECP:
- is an absolute transducer built according to the “Bridge” scheme
- designed for welds testing in compliance with the ISO 17643 requirements
- applied together with the eddy current flaw detectors Eddycon C, Eddycon CL and flaw detectors from other producers.
|
Designation |
Tip Ø 'D', in/mm |
Length, in/mm |
Frequency, kHz |
Connector |
Material |
Defects under paint coating |
Subsurface defects |
|
WLD100K5А.5×2-.2DA0 |
.2/5 |
2/50 |
100-1000 |
Lemo 04 |
Fe |
up to 0.3 mm |
+ |
|
WLD100K5А.5×2-.35DA0 |
.35/8.9 |
2/50 |
100-1000 |
Fe |
up to 0.5 mm |
+ |
|
|
WLD100K5А.5×2.5-.43DA0 |
.43/10.9 |
2/50 |
100-1000 |
Fe |
up to 0.5 mm |
+ |
|
|
WLD100K5А.5×2.5-.63DA0 |
.63/16 |
2/50 |
100-600 |
Fe |
up to 1 mm |
+ |
|
|
WLD100K5А.5×2.5-1DA0 |
1/25.4 |
2.5/65 |
100-600 |
Fe |
up to 1.5 mm |
+ |
|
WLD |
100K |
5А |
.5 |
× |
2 |
– |
.63D |
A |
0 |
|
1 |
2 |
3 |
4 |
|
5 |
|
6 |
7 |
8 |
-
WLD – weld probe for welds testing.
-
Probe frequency:
“HZ” designates the Hz range; “К” designates the kHz range; “М” designates the MHz range.
-
Drop angle of sensing element.
-
Drop length, inches.
-
Probe length, inches. Can be changed upon request.
-
Probe tip diameter, inches.
-
Probe type designation "А" . “А” – Absolute.
-
Probe modification number.
