Eddy-current probes

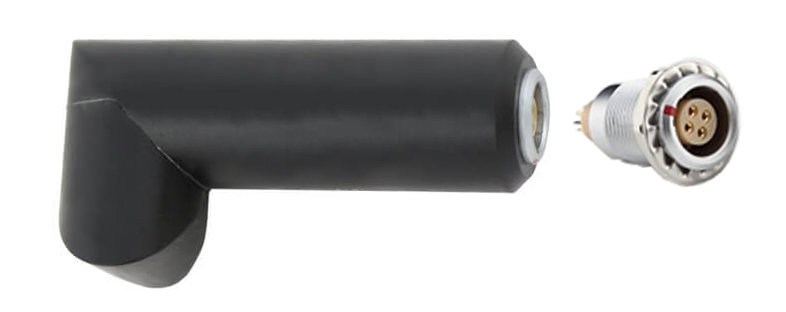

Right Angle Weld Probe (90˚ tip, Transverse, Bridge)

Right Angle Weld Probe (90˚ tip, Transverse, Bridge)



Designation

Tip Ø 'D', in/mm

Length, in/mm

Frequency, kHz

Connector

Material

Defects under paint coating

Subsurface defects

WLD100K5А.5×2-.2DAT0

.2/5

2/50

100-1000

Lemo 04

Fe

up to 0.3 mm

+

WLD100K5А.5×2-.35DAT0

.35/8.9

2/50

100-1000

Fe

up to 1 mm

+

WLD100K5А.5×2-.43DAT0

.43/10.9

2/50

100-1000

Fe

up to 1 mm

+

WLD100K5А.5×2-.63DAT0

.63/16

2/50

100-600

Fe

up to 1 mm

+

WLD100K5А.5×2.5-1DAT0

1/25.4

2.5/65

100-600

Fe

up to 1.5 mm

+



WLD

100K

.5

×

2

.63D

AT

0

1

2

3

4



5



6

7

8


  1. WLD – weld probe for welds testing.

  2. Probe frequency:

    HZ” designates the Hz range; “К” designates the kHz range; “М” designates the MHz range.

  3. Drop angle of sensing element.

  4. Drop length, inches.

  5. Probe length, inches. Can be changed upon request.

  6. Probe tip diameter, inches.

  7. Probe type designation "АT". “А” – Absolute. “T” (Transverse) – designation of a transverse position of probe sensing element relative to the probe axis.

  8. Probe modification number.
