Eddy current probes

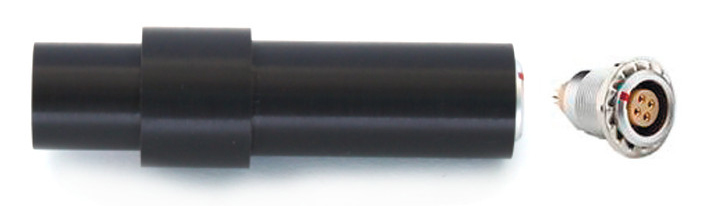

Conductivity probe (Reflection type)

Conductivity probe (Reflection type)

This probe is used for conductivity measurement of non-ferrous materials as well as for thickness measurement of non-conductive coating.



Designation

Tip Ø ‘D’,
mm / inch

Length,
mm / inch

Frequency,
kHz

Connector

Max. coating thickness,
mm / inch

Conductivity measurement range,
MS/m / %IACS

Material

CP-13

13 / .5

70 / 2.75

60

Lemo 04

.5 / .02

.46 to 63.8 / 0.8 to 110.0

NFe



CP

13

1

2



1. CP – conductivity probe.

2. Probe tip diameter, mm.
