Eddy current calibration blocks

Calibration Blocks for Holes Testing

Calibration Blocks for Holes Testing







Designation

Defect parameters

Roughness of operating surface, µm

Overall dimensions, mm/in.



Material



Field of use

Note

Length, mm/in.

Width, mm/in.

Depth, mm/in.



RS2353.12-5H/0-FLN/0.5/AL



Full length



0.1 / .004



0.5 / .02



0.63



150 x 50 x 10 /

6 x 2 x .4



Aluminium alloy



Aircraft, power, transportation, engineering industries

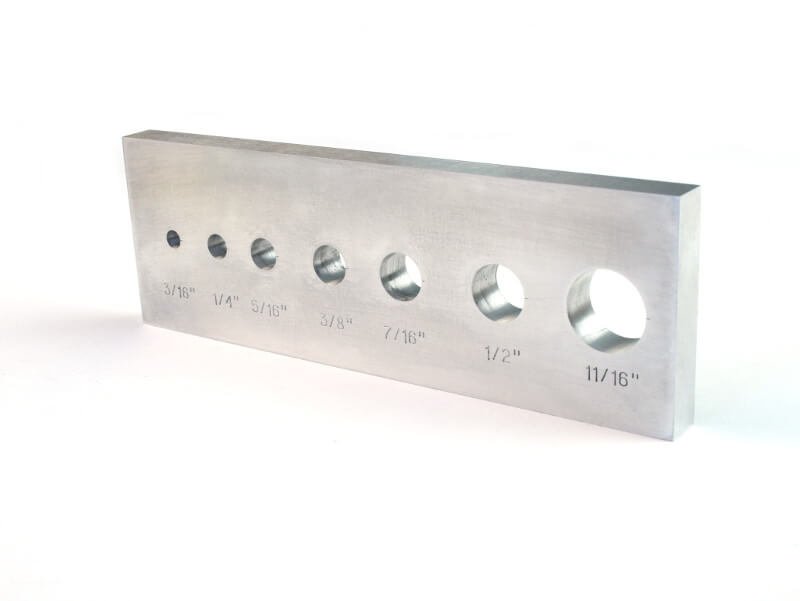

Rectangular calibration block with several holes



RS2353.12-1H/0-CN/0.76/AL



0.76 / .03



0.1 / .004



0.76 / .03



0.63



ø 24 × 10 /

Ø1 x .4



Aluminium alloy

Cylindrical calibration block with one hole



RS — reference standard;

2353 — manufacturer company code;

.12 — calibration block for holes testing;

...H — number of holes;

/0 — number of flawless holes;

СN/FLN — defect type (CN – corner notch, FLN – full length notch);

0.5/0.76 — defect dimensions;

AL/FE/SST/TI — material.
