Angle Beam Single Element Probes (EU version)

Ultrasonic probes

Various types of UT transducers produced by OKOndt GROUP

Download brochure

: Hits: 3676

Angle Beam Single Element Probes (EU version)

Ultrasonic Angle Beam Probes (single element) produced by OKOndt GROUP™

Ultrasonic Angle Beam Probes (single element) produced by OKOndt GROUP™

REQUEST A QUOTE

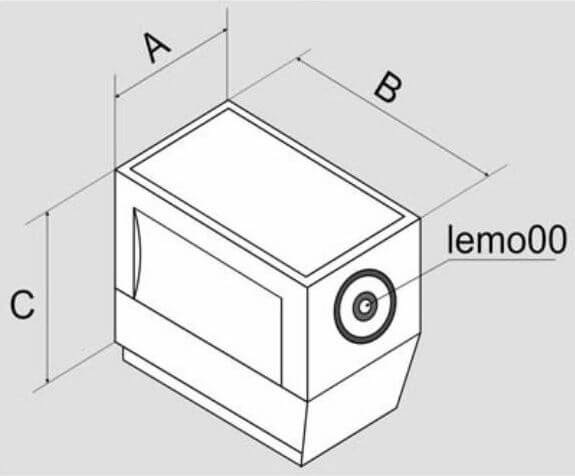

Transducer dimensions:

Element dia.		A		B		C
mm	in	mm	in	mm	in	mm	in
8x9	.315x.350	16.5	.65	28.5	1.12	22.0	2.0
14x14	.550x.550	21.2	.83	37.5	1.47	30.7	1.2
22x22	.860x.860	31.6	1.24	56.0	2.2	44.0	1.73

General specifications:

Catalog number	Frequency, MHz	Refracted angle,^o	Element size,		Type of case	Connector type	Connector position
Catalog number	Frequency, MHz	Refracted angle,^o	mm	in	Type of case	Connector type	Connector position
TAB1-45-8x9	1.0	45	8x9	.315x.350	Plated brass	Lemo00	Side
TAB1-60-8x9	1.0	60	8x9	.315x.350	Plated brass	Lemo00	Side
TAB1-70-8x9	1.0	70	8x9	.315x.350	Plated brass	Lemo00	Side
TAB2-45-8x9	2.0	45	8x9	.315x.350	Plated brass	Lemo00	Side
TAB2-60-8x9	2.0	60	8x9	.315x.350	Plated brass	Lemo00	Side
TAB2-70-8x9	2.0	70	8x9	.315x.350	Plated brass	Lemo00	Side
TAB4-45-8x9	4.0	45	8x9	.315x.350	Plated brass	Lemo00	Side
TAB4-60-8x9	4.0	60	8x9	.315x.350	Plated brass	Lemo00	Side
TAB4-70-8x9	4.0	70	8x9	.315x.350	Plated brass	Lemo00	Side
TAB2-45-14x14	2.0	45	14x14	.550x.550	Plated brass	Lemo00	Side
TAB2-60-14x14	2.0	60	14x14	.550x.550	Plated brass	Lemo00	Side
TAB2-70-14x14	2.0	70	14x14	.550x.550	Plated brass	Lemo00	Side
TAB4-45-14x14	4.0	45	14x14	.550x.550	Plated brass	Lemo00	Side
TAB4-60-14x14	4.0	60	14x14	.550x.550	Plated brass	Lemo00	Side
TAB4-70-14x14	4.0	70	14x14	.550x.550	Plated brass	Lemo00	Side
TAB2-45-20x22	2.0	45	20x22	.860x.860	Plated brass	Lemo1S	Side
TAB2-60-20x22	2.0	60	20x22	.860x.860	Plated brass	Lemo1S	Side
TAB2-70-20x22	2.0	70	20x22	.860x.860	Plated brass	Lemo1S	Side
TAB4-45-20x22	4.0	45	20x22	.860x.860	Plated brass	Lemo1S	Side
TAB4-60-20x22	4.0	60	20x22	.860x.860	Plated brass	Lemo1S	Side
TAB4-70-20x22	4.0	70	20x22	.860x.860	Plated brass	Lemo1S	Side
