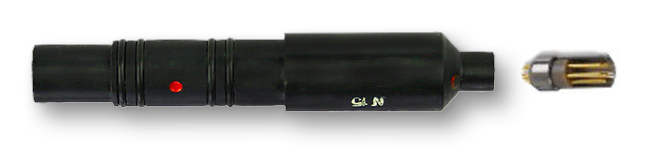

Dynamic Rotating Countersink Probe (100˚ angle of chamfer, Differential Unshielded / Shielded)

Dynamic Rotating Countersink Probe (100˚ angle of chamfer, Differential Unshielded / Shielded)



Designation

Guide hole diameter “D”, mm/inch

Countersink

angle, degr.

Length, mm

Frequency

Connector

Material

RCP-100˚- 3.17

3.17/.125

100

64

200 kHz -3 MHz

4-pin Fischer connector

(to Hocking, GE, Rohmann and Forester drive units, etc.)

Fe/NFe

RCP-100˚- 3.96

3.96/.156

100

64

200 kHz -3 MHz

Fe/NFe

RCP-100˚- 4

4/.157

100

64

200 kHz -3 MHz

Fe/NFe

RCP-100˚- 4.75

4.75/.187

100

64

200 kHz -3 MHz

Fe/NFe

RCP-100˚- 5

5/.197

100

64

200 kHz -3 MHz

Fe/NFe

RCP-100˚- 6

6/.236

100

64

200 kHz -3 MHz

Fe/NFe

RCP-100˚- 6.34

6.34/.25

100

64

200 kHz -3 MHz

Fe/NFe

RCP-100˚- 7

7/.276

100

64

200 kHz -3 MHz

Fe/NFe

RCP-100˚- 7.92

7.92/.312

100

64

200 kHz -3 MHz

Fe/NFe

RCP-100˚- 9

9/.354

100

64

200 kHz -3 MHz

Fe/NFe

RCP-100˚- 9.52

9.52/.375

100

64

200 kHz -3 MHz

Fe/NFe

RCP-100˚- 11

11/.433

100

64

200 kHz -3 MHz

Fe/NFe

RCP-100˚- 11.09

11.09/.437

100

64

200 kHz -3 MHz

Fe/NFe

RCP-100˚- 12.69

12.69/.5

100

64

200 kHz -3 MHz

Fe/NFe

RCP-100˚- 13

13/.512

100

64

200 kHz -3 MHz

Fe/NFe

RCP-100˚- 14.26

14.26/.562

100

64

200 kHz -3 MHz

Fe/NFe

RCP-100˚- 15

15/.59

100

64

200 kHz -3 MHz

Fe/NFe

RCP-100˚- 15.86

15.86/.625

100

64

200 kHz -3 MHz

Fe/NFe

RCP-100˚- 17.44

17.44/.687

100

64

200 kHz -3 MHz

Fe/NFe

RCP-100˚- 19.03

19.03/.75

100

64

200 kHz -3 MHz

Fe/NFe



RCP

-

100˚

-

3.17

(SS/Sh)

1



2



3

4

  1. RCP – dynamic rotating probe for hole countersinks testing.

  2. Countersink angle, degr.

  3. Range of hole size, mm.

  4. Guide hole diameter, mm.

  5. The housing of a standard probe is made of delrin; in case a stainless steel housing is required, please indicate the letters “SS”(Stainless Steel) at the end of a probe designation code in your order. Probes of standard type are manufactured unshielded. In case a shielded probe is required, when making an order, please indicate the letters ”Sh” (Shielded) at the end of a designation code.

It is possible to manufacture the probes for countersink testing with other angles. For this, the required countersink angle should be specified in the order.
