Bloques de calibración de corrientes Eddy

Bloques para la detección de los defectos superficiales (de forma plana)

Bloques para la detección de los defectos superficiales (de forma plana)

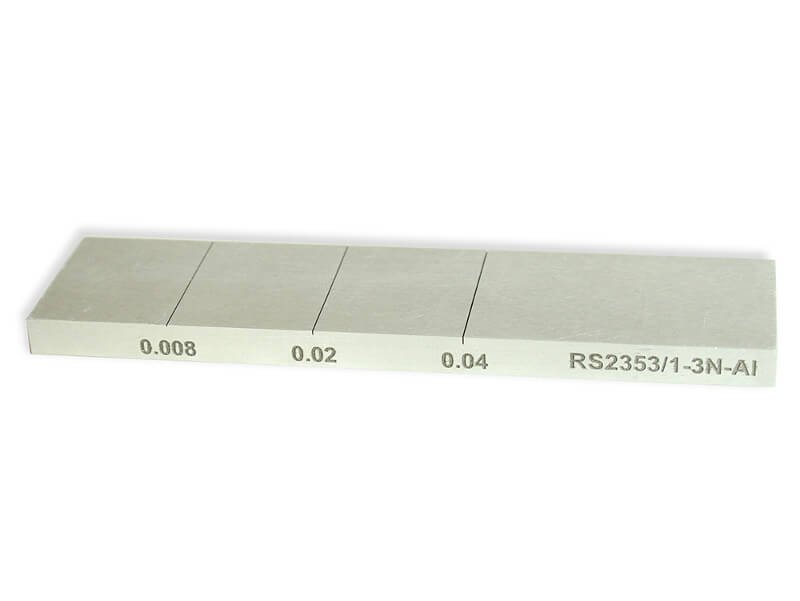

Calibration blocks with nothes on one side



Designation

Defect parameters

Roughness of operating surface, µm

Overall dimensions, mm/in.



Material



Field of use

Length, mm/in.

Width, mm/in.

Depth, mm/in.



RS2353/1-3N-Fe



25 / 1



0.15 / .006



0.5; 1; 2 /

.02; .04; .08



1.25



100 x 25 x 5.5 /

4 x 1 x .2



Carbon steel

Aircraft, oil and gas, chemical, power, transportation, engineering industries



RS2353/1-3N-Al



25 / 1



0.15 / .006



0.2; 0.5; 1 /

.008; .02; .04



1.25



100 x 25 x 5.5 /

4 x 1 x .2



Aluminium alloy



Aircraft industry

RS — reference standard;

2353 — manufacturer company code;

/1 — number of sides with notches;

...N — number of notches;

AL/FE/SST/TI – material.

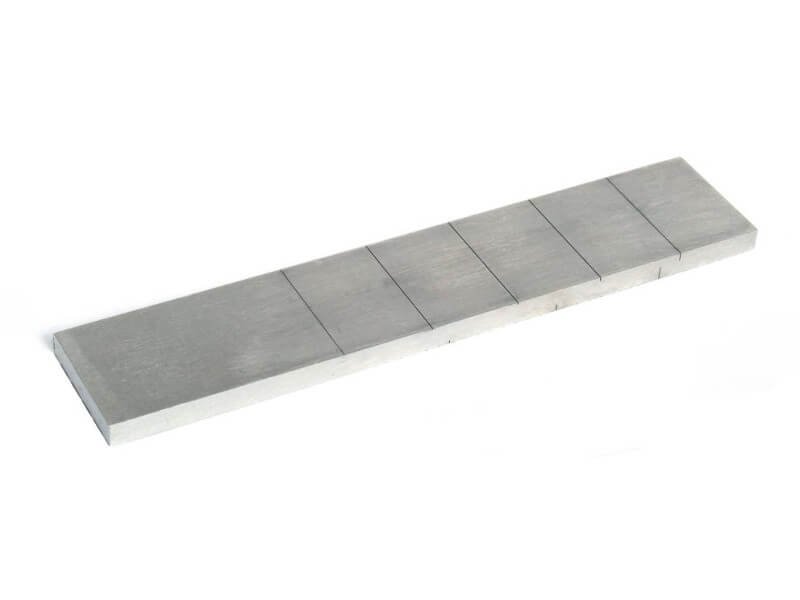

Calibration blocks with notches on two sides







Designation



Side

Defect parameters

Roughness of operating surface, µm

Overall dimensions, mm/in.



Material



Field of use

Length, mm/in.

Width, mm/in.

Depth, mm/in.



RS2353/2-8N-320-Fe

1



30 / 1.2





0.1 / .004



0.1; 0.2; 0.5; 1; 2 /

.004; .008; .02; .04; .08

1.25

150 x 30 x 5.5 /

6 x 1.2 x .2



Carbon steel

Aircraft, oil and gas, chemical, power, transportation, engineering industries

2

0.6; 1.5; 3 /

.024; .06; .12

20; 40; 80; 160; 320



RS2353/2-8N-40-Al

1



30 / 1.2





0.1 / .004



0.1; 0.2; 0.5; 1; 2 /

.004; .008; .02; .04; .08

1.25

150 x 30 x 5.5 /

6 x 1.2 x .2



Aluminium alloy

Aircraft industry

2

0.6; 1.5; 3 /

.024; .06; .12

20; 40; 80; 160; 320

RS — reference standard;

2353 — manufacturer company code;

/2 — number of sides with notches;

...N — number of notches;

20/40/80/160/320 — roughness of the surface on the calibration block’s second side;

AL/FE/SST/TI – material.
